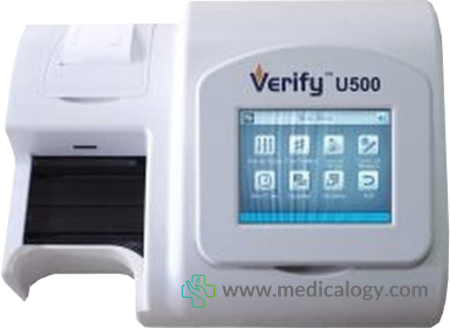

VERIFY U-500 Semi Automatic Urine Analyzer
Specifications:
Feature Specifications
Methodology Reflectance Photometer
Detection Photosensitive Diode
Throughput 500 tests/hour
Measuring Cycle 7 seconds/test
Memory 2,000 Results
Strip Incubation Time 1 minute
Wavelength 525 nm and 635 nm
Waste Disposal Capacity Up to 150 Strips
Analyzer Ports
Standard RS232C Port for Barcode Reader or Data Transfer,
25 Pin Parallel Port for External Printer Capabilities
Internal Thermal Printer (included),
Optional External Printer (not included),
RS232C Barcode Reader (optional),
RS232C Data Transfer Cable (optional)
Calibration Automatic
Available Languages on Screen English (default in US and select countries) and
additional language(s)
Meter Operating Conditions 0-40ºC (32-104ºF); ≤85% Relative Humidity
(noncondensing)
Strip Operating Conditions 15-30ºC (59-86ºF); ≤85% Relative Humidity
(noncondensing)
Power Source 100-240 V AC, 50-60 Hz
Dimensions (L x W x H) 35.5 cm × 27.4 cm × 19.5 cm (14.4” x 10.8” x 7.7”)
Display Dimensions (L x W) 11.5 cm × 9.0 cm (4.5” x 3.5”)
Weight 4.0 kg (8.82 lbs)
Made in USA
