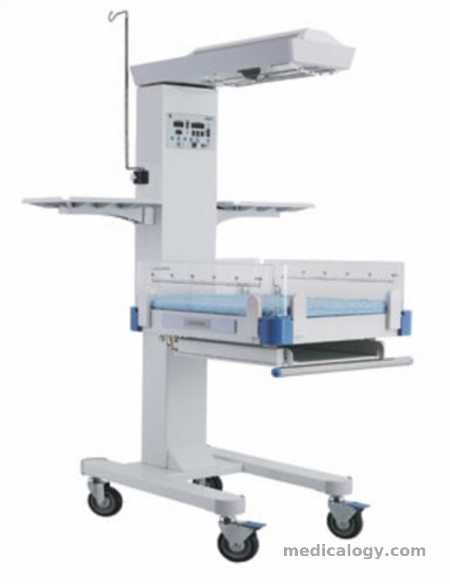

Infant Radiant Warmer GEA HKN 9010

Features:

- Servo control: Skin-temp of Baby, Air temp of bed.

- Sensor used to measure the bed or skin temperature

- RS232 Connector for contact with computer monitor

- Light touch control panel waterproof.

- Set temperature and actual temperature separately display

- Heating consumption 0~100%

- Four alarm identification

- Radiate box adjustable in two direction from 0o~90o

- Bassinet gradient adjustable in ±15 angel degree

- X-ray tray under bassinet, convenient for taking x-ray photo

- Far-infrared quartz tube as heater

- Rail of bed easy to move, convenient for rescue operating

Main Technical Data :

- Power suplly requirements

   Voltage : AC 220V ± 10%, 50 Hz ± 10% or 110 V ± 10%, 60 Hz ± 2%

   Power rate : ≤ 1000 VA

- Operating condition

- Environment temp : 18’C ~ 30’C

   Relative humidity : < 80%

   Environment air flow speed : < 0,3 m/s

 - Temperature control

   Bed temperature control range   : 25’C~37’C

   Skin temperature control range  : 34’C~37’C

   Temperature control accuraty : ± 0.1’C

   Measure temperature  error : ≤ ± 0.3’C

   Mattress temperature uniformity : ≤ 2.0’C

  Temperature rise time : ≤ 38 minutes

- Others parameter snd physical data

  Far-infrared wavelength :  1 um ~ 3 um

  Apgar time : Continuous record time and audible alarm every 1,5,10 minutes

  Radiator horizon angle : 0, 30, 60 degree tow ways adjustable

  Mattress tray dimensions : 665 mm x 535 mm

  Bassinet Max load : 10 kg

  Instrument shelf max load : 2 kg

  I.V. Pole max load : 2 kg

  Height from ground to radiator  : 180 cm

 Height from ground to bed : 85 cm

 Packing size : 121 cm x 66 cm x 102 cm main body

 Gross weight : 100 kg

Four kind failures, Alarm indication (audible and visible) :

 When alarm active, automatic cut off power supply and display actual temperature.

* Over Temperature Alarm :

 Active actual temperature exceeds 38°C

* Temperature deviation alarm :

Active actual temperature 1° C departure the set point

* SensorAlarm :

Actived if sensor short circuit, open circuit or place out of right position

* Power failure alarm :

Actived if power break down or power cord disconnect when turn on the unit
