HKN 93A is added with Breath resuscitation bag and infant head fixing unit.
Type : Infant Radiant Warmer HKN 93
Features:
- Air-temp Servo controlled by micro-computer
- Temperatur Sensor inspects bed or skin temperature
- Touch swicth panel
- LED digital display
- Heating power rate indicated 0~100%
- Tree self-check alarms with audible and visible
- Radiator horizon angel can be adjustable in two ways
- Bassinet obliquity is adjustable in 5 degree
- Organic glass guard around can be disassembly
Specifications:
- Power supply requirements
Voltage : AC 220 V ± 10 %, 50 Hz ± 10%
Power rate : ≤ 1000 VA
- Operational Condition
Environment temp : 18'C ~ 30'C
Relative humidity : < 80 %
Environment air flow speed : < 0.3 m/s
Temperature control range : 25'C~37'C
Temperature rise time : ≤ 38 minutes
Radiator horizon angel : 0' ~ 90' degree tow ways adjustable
Mattress tray dimensions : 750 mm x 480 mm
Bassinet Max load : 10 kg
Instrument shelf max load : 2 kg
I.V. Pole max load : 2 kg
Packing size : 111 cm x 6 1.5 cm x 115 cm
Gross weight : 60 kg
- Three System alarm identification
With audible and visible; cut off power of heater when alarm accurs; display actual temperature
* High temp cut out alarm
Activated if display temperature exceeds 38o C
* Temperature deviation alarm
Activated display temperature is above or below 1°C
* Sensor alarm
Activated if sensor is short circuit, open circuit or place out of right position

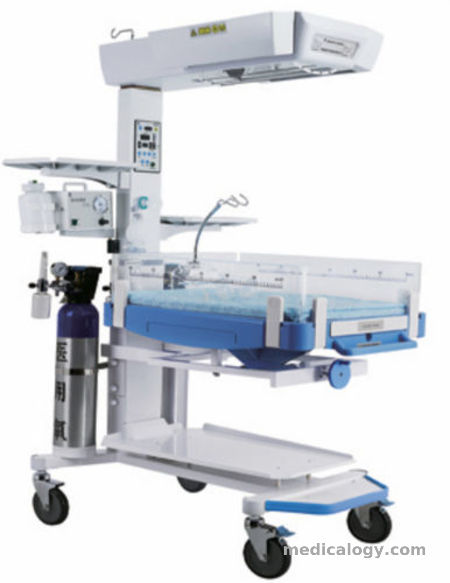

Type : Infant Radiant Warmer with Oxygen Tank 93A
Features :
- Based on HKN-93 infant warmer quipped with Phototherapy Units
- Two Groups Photo lamps hung on both side radiator box
- Per lamps are 25 watt
- used to rescue the jaundice of neonate quickliy
