Dijamin original dan bergaransi
Physical Specification :
Dimension Appr. 110 W x 59 D x (130 150) H cm
Weight Appr.105 Kg (default) please refer to optional stands
Guard and handle type PU and Steel
Castors 4 inches, two lockable
IV pole Adjustable with fixation clamp, stainless steel
Tray for instrument with max load 2,5 Kg
Untuk informasi harga dan yang lainnya, silakan hubungi kami

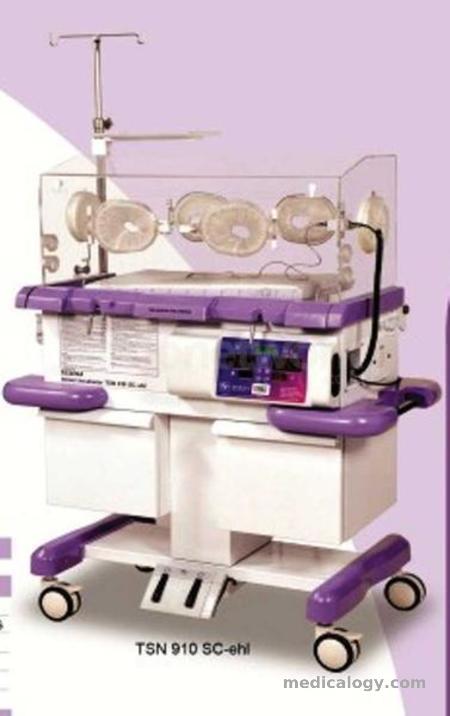

TSN 910 SC EHL
Power AC 220 V, 50 Hz, 350 Watt
Physical Specification :
Dimension Appr. 110 W x 59 D x (130 150) H cm
Weight Appr.105 Kg (default) please refer to optional stands
Guard and handle type PU and Steel
Castors 4 inches, two lockable
IV pole Adjustable with fixation clamp, stainless steel
Tray for instrument with max load 2,5 Kg
Hood Specifications:
Dimension Appr. 86 W x 41 D x 45 H cm
Mattress size Appr. 65 cm x 35 cm
Mattress to hood Appr. 36 cm
Mattress elevation 0 to12 (trendelenburg and reverse by crank)
Mattress tray ABS
Access type 4 port doors with cuff & ABS latches, 2 iris port, 4 tubing grommets, 1 access panel
Characteristics:
Control panel Membran Keyboard type, auto self-test system, arge LED seven-segment for actual temperature
Control mode Servo (skin Mode) and manual (Air mode only)
Controller type Microcontroller
Control panel lock Automatic key lock after 10 seconds unchanged
Temperature display range 17.1 C 42.4 C
Air mode control range 25.0 C 37.0 C, resolution 0.1 C
Air mode maximum override 39.0 C
Warm up time 30 minutes
Humidity range 15 90 % RH
Water reservoir capacity 1500 ml
Noise level in hood 60 dB
Oxygen supply Oxygen inlet with micro filter
Air flow velocity 10 cm/s
Alarm indicator visible (dot matrix LCD) and audible (buzzer)
Alarm silencer 2 minutes for Low Internal Battery or Mains Failure, 10 minutes for others
Information on LCD Heater level, alarms, serial numbers, internal battery level and User ID (by customer request)
Alarm :
System failure
Probe failure (probe disconnected)
Low internal battery
High temperature (38.0 C or 40.0 C)
Sensor failure
