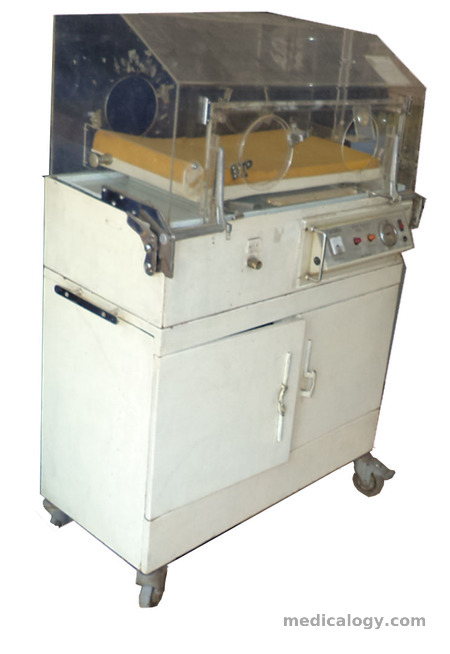

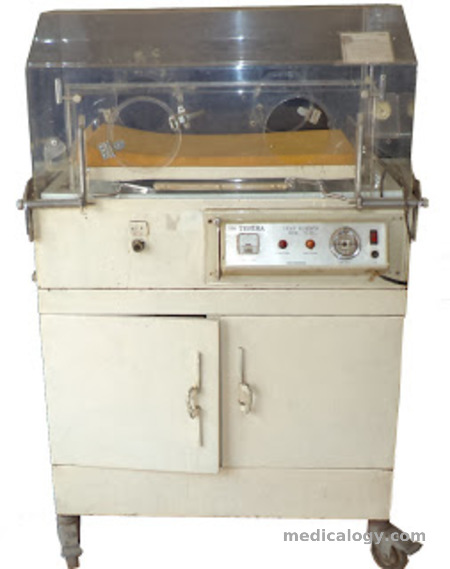

TSN 87
Dimension and weight
- Appr. 99 W x 59 D x 137 H cm, ± 60 Kg Guard and handle type
Steel Castors
TSN 87
Dimension and weight
- Appr. 99 W x 59 D x 137 H cm, ± 60 Kg Guard and handle type
Steel Castors
Dimension Appr. 86 W x 41 D x 45 H cm
Mattress size Appr. 65 cm x 35 cm
Mattress to hood Appr. 36 cm
Mattress elevation 0 to 12° (trendelenburg and reverse by crank)
Mattress tray ABS
Access type 4 port doors with ABS latches, 4 tubing grommets, 1 access panel
Control panel Front panel, rotary switch set pointer
Control mode Manual (Air mode)
Controller type Analog PID (Proportional-Integral-Derivative)
Temperature control range 27 °C – 37 °C, resolution 1 °C
Highest temperature limit 38 °C
Temperature indicator Seven Segment LED Display Temperature
Warm up time ≤ 30 minutes
Humidity range 15 – 90% RH(A) displayed with LCD hygrometer
Water reservoir capacity 1500 ml
Noise Level in Hood ≤ 60 dB
Air filter Micro filter
Air flow velocity ≤ 10 cm/s
Alarm indicator Visible (LED) and audible (buzzer)
- Sensor failure
- High temperature - Fan failure
