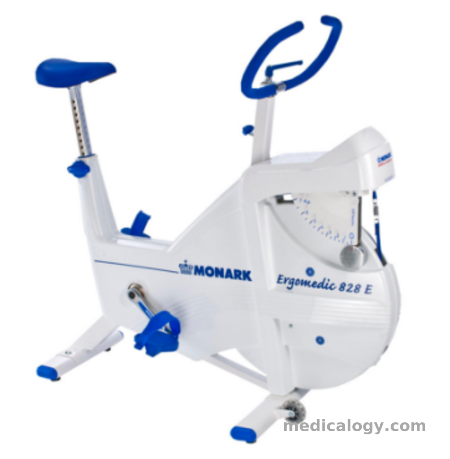

Sepeda Statis Monark 828E

The adjustable brake system and the force can be set and read Kiloponds (kp) and Newton (N). The actual brake power is showed in Watts on the electronic meter. The energy that a person has to develop over time to overcome this braking power, can thereby be calculated. The energy is usually expressed in kJ (kilojoules) or kcal (kilocalories). Ergomedic 828 E is also equipped with an electronic meter that displays pedal revolutions per minute (RPM), heart rate in beats per minute (HR), time in minutes and seconds (TIME), speed in km per hour / miles per hour (SPEED) and the distance travelled in km / miles (DISTANCE). In addition braking power can be set, giving a reading of calorie consumption (CAL) and power in watts (WATT). The watt level depends on pedalling speed, it can be fine tuned by increasing or decreasing the speed or pedal rpm.

Each 828 E is calibrated at the factory. This means that you can begin to use the ergometer directly after assembly. However, if the user wishes to verify the scale, please read the instruction for “Calibration” in this manual.

Facts

• Large, well-balanced flywheel 20 kg (44 lbs)

• Pendulum scale, easy to calibrate

• Adjustable saddle and handlebar

• Stable frame, solid steel tube

• Powder painted

• Wheels for easy transport

• Electronic meter with heart rate

Width :

*517 mm (20 1/3”) at handlebar

640 mm (25”) at support tubes

Length :

1120 mm (44")

Height :

945-1295 mm (37-51”) at handlebar

780-1105 mm (31-43 ½”) at seat

Weight :

52 kg (114 2/3 lbs)

Max user weight 250 kg (551 lbs)

Included :

Chest belt

Press any key or move the pedal gives a signal to the meter that activates all functions. At the display for heart rate (HR) a heart symbol is lit which means that the meter is trying to find a pulse signal from an external source, chestbelt with electrodes, Art. No: 9339-98. If the meter cannot find such a signal the HR function is automatically turned off after 30 seconds. When the function is turned off the heart symbol is not lit any more. The heart rate function can be turned on again by pressing any key.

The timer starts automatically when pedals are moved. Meter values for time (TIME), distance (DISTANCE) and calories (CAL) can be set to zero by pressing the RESET button for more than two seconds. To get correct readings for calories and watts, the kp-value on the electronic meter has to be set to the same value as the pendulum, or the kp-window shown to the left of the electronic meter

Example: The pendulum and the kp-window is showing 2 kp. Press the kp button to the left on the meter. The lower display window is now showing figures in kp. Increase or decrease in steps of 0.1 kp by pressing the kp button - (arrow up) or the RESET button - (arrow down) until the reading corresponds with the actual or desired kp-values on the pendulum scale or in the kp-window. After that press the CAL/WATT button to either show the CAL or WATT figures. At further press on the CAL / WATT-button the display toggles between calories and watts. The watt reading in the display is depending on the pedalling speed. The watts can accordingly be adjusted by increasing or decreasing the pedalling speed. Calories are calculated all the time. Do not expose the meter to direct sunlight or extremely high temperature. Do not use any dissolvents when cleaning. Use only dry cloth.

Heart rate A person's heart rate can be measured with a chest belt that senses the electronic output of the heart. The chest belt is standard equipment.

Fuss-free HR measurement requires that the belt is correctly placed. When it is correctly fitted the logo on the belt will be central and readable, outward and upright, by another person. Before putting on the belt, clean the skin where the belt is to be placed. The chest belt should be secured at a comfortable tension around the mid section, just below the breast muscle, see Fig: Placement of the chest belt. Moisten the electrodes before use, see Fig: Electrodes on the back of the chest belt. To make contact with the HR receiver on the bike, the distance should not be more than 100 cm / 39 1/3". It is especially important when first used to identify the chest belt with the sensor, by standing close to get the HR (maximum 60 cm / 23 2/3"). NOTE! Electromagnetic waves can interfere with the telemetry system. Cellular phones are not allowed to be used near the bike during test.
