Dijamin original dan bergaransi
Model NO. : HXD-420B
Supply voltage : 220V/AC 1500W
Inner jacket dimension : 420*180*120mm
Overall dimension : 444*207*235mm
Dimension for CTN : 500*330*290mm
Full wight : 9KG
Timer : 0-30min

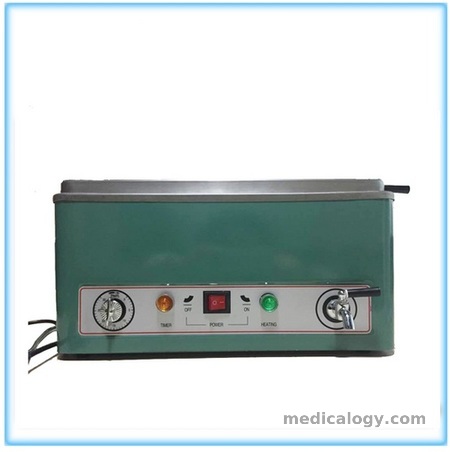

Steam Sterilizer 42 cm SS type HXD-420B
This sterilizer is suited for hospitals,clinics and 1 abortories to sterilizer small instruments, utensils, containers and some other medical appliance.
The heating element is an electronic tube(220V,1500W,1000W),which is fitted on the bottom inside the main body.When the tube is electrified,it heats the water directly and can fully utilize thermal energy.
This sterilizer can preset the time if sterilzization to ensure the control for the boiling sterilization.A double metal foil temperature controller whose contact is in the normal open condition,is installed at outside bottom of the main body.
After the water has been boiled at the temperature of 100ºC,the controller comes into action immediately and the contact is in the closed condition, so that the electromagnetic iron of the timer begins to attract the stop plate in the timer.
After that,the timer begins to work.And the electrothemal tube goes on heating,keeps the boil and cuts off the power supply automatically when the preset work of sterilization been finished.
Specifications
Model NO. : HXD-420B
Supply voltage : 220V/AC 1500W
Inner jacket dimension : 420*180*120mm
Overall dimension : 444*207*235mm
Dimension for CTN : 500*330*290mm
Full wight : 9KG
Timer : 0-30min
Operation instructions:
