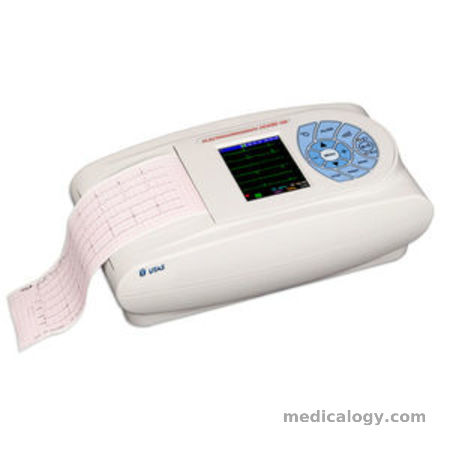

Electrocardiograph is a portable, lightweight and cost efficient 12-channel electrocardiograph with high quality data recording and subsequent evaluation. It represents a combination of extended digital signal processing technology with user friendly software adaptable to various requirements. These features and many more make the electrocardiograph irreplaceable at clinics, hospitals, ambulances as well as private general practices.
-
Number of channels:
12-channel
-
Technology:
digital
-
Applications:
resting
-
Options:
with printer
- One time record: 3/6 channels
- Simultaneous recording of 12 leads
- Functional keyboard for direct steering of basic functions of the device
- Detection of simulator impulses
- In-built, graphic, 4,0” screen (resolution: 240 x 128 )
- Width of record: 80 mm (thermic paper)
- Recording in manual mode
- Recording in automatic mode
- Mains power and in-built battery
- Record speed: 5 / 10 / 25 / 50mm/s
- Sensitivity: 2,5 / 5 / 10 / 20 mm/mV
- Filtration of network disturbances: 50/60 Hz
- Filtration of muscle disturbances: 25/35 Hz
- Adjustment filter (automatic)
- Filtration of isoelectric line (0,05 - 1,5 Hz)
- Sampling frequency: 1000 Hz/channel
- Converter: A/C 24 bit
- Automatic test of the device
- Signalization of wrong connection with particular electrodes
- Weight < 0,7 kg
- Dimensions: 175 x 115 x 45 mm
- Standard equipment: 1 set of suction electrodes for adults (6 pcs); 1 set of clamp electrodes for adults (4 pcs); 1 set of cables; 0,5L of gel; 1 roll of paper (80 mm x 20 m)
- Available versions in national languages
