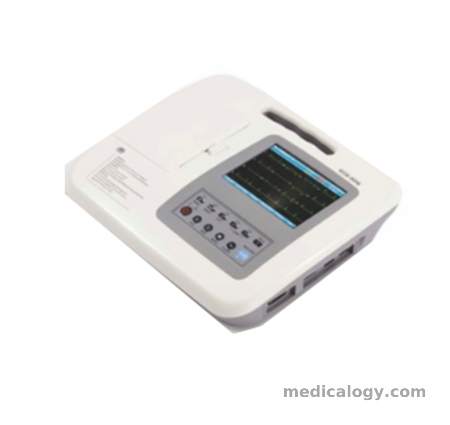

The Carewell ECG-1106L is a portable veterinary ECG machine. It is a light and compact size and has a built in measurements for cats and dogs. Can store internally up to 250 ECG files for later use. Clear monitoring on a 6" LCD screen. Print Paper: IMO-GRAPH112 112mm x 30m long
The Carewell ECG-1106L is a portable veterinary ECG machine. It is a light and compact size and has a built in measurements for cats and dogs. Can store internally up to 250 ECG files for later use. Clear monitoring on a 6" LCD screen. Print Paper: IMO-GRAPH112 112mm x 30m long
Specification
• Light and compact size.
• Mains or battery powered.
• ECG files can be stored internally or via an SD Card.
• Built in measurements for cats and dogs.
• 6" LCD screen.
• Auto, manual and analysis modes available.
• Pre 10 second printing function.
• Auto adjustments of baseline for optimum printing.
• Option to connect to PC via USB.
• Print Paper: IMO-GRAPH112
• Weight: 2.5kg
• Dimensions: 345mm x 300mm x 80mm
Standard Configuration
• ECG-1106L main unit
• Patient cable
• Chest electrode
• Limb electrode
• Thermal paper
• Paper roller
• Rechargeable battery
• Dust cover
Main features
• Design patent, software patent
• Application of CSE & AHA database, reliable measurement and analysis results
• 12-lead simultaneous acquisition
• 6"LCD, real-time display of 12-lead ECG waveforms
• Detection and alarm on lead-off and low battery capacity
• Automatic adjustment of baseline for optimal printing
• Built-in ECG simulator for DEMO purpose
• 3 kinds of operation mode: AUTO, MAN and ANA
• 3 kinds of filters: HUM, EMG and ADS
• AC, DC and battery power supply
• 2 types lead mode: Standard and Cabrera
• 8 ECG files can be saved in the ECG
• 250 ECG files can be saved to SD card
• Communication with PC for ECG data management(Option)
