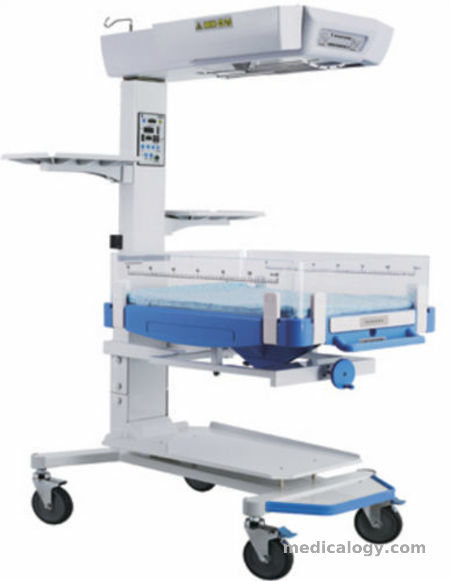

Infant Radiant Warmer GEA HKN 93B
Deskripsi Produk
Dijamin original dan bergaransi
HKN 93B is added with LED phototherapy unit, timer to count phototherapy time
Harga Infant Radiant Warmer GEA HKN 93B
Deskripsi Infant Radiant Warmer GEA HKN 93B
Type : Infant Radiant Warmer with Oxygen Tank 93B
Features :
- Serve control: Skin-temp, Mattress-temp and Oxygen concentration
- Automatic control or manual control selectable
- Sensor used to measure the bed or skin temperature
- RS232 Connector for contact with computer monitor
- Light touch control panel waterproof.
- Set temperature and actual temperature separately display
- Heating consumption 0~100%
- Four alarm identification
- Radiate box adjustable in two direction from 0o~90o
- Bassinet gradient adjustable in ±15 angel degree
- X-ray tray under bassinet, convenient for taking x-ray photo
- Far-infrared quartz tube as heater
Main Technical Data :
* Power suplly requirements
- Voltage : AC 220V ± 10%, 50 Hz ± 10% or 110 V ± 10%, 60 Hz ± 2%
- Power rate : ≤ 1200 VA
* Operating condition
- Environment temp : 18oC ~ 30oC
- Relative humidity : < 80%
- Environment air flow speed : < 0,3 m/s
* Temperature control
- Bed temperature control range : 25’C~37’C
- Skin temperature control range : 34’C~37’C
- Temperature control accuraty : ± 0.1oC
- Measure temp error : ≤ ± 0.3oC
- Mattress temperature uniformity : ≤ 2.0oC
- Temperature rise time : ≤ 38 minutes
- Far-infrared wavelength :1 um ~ 3 um
- Apgar time : Continuous record time and audible alarm every 1,5,10 minutes
- Radiator horizon angle : 0, 30, 60 degree tow ways adjustable
- Bassinet tilt angel adjustable : ±15 degree
- Mattress tray dimensions : 750 mm x 585 mm
Specifications :
- Bassinet Max load : 10 kg
- Instrument shelf max load : 2 kg
-I.V. Pole max load : 2 kg
- Height from ground to radiator : 180 cm
- Height from ground to bed : 85 cm
- Packing size : 127 cm x 81 cm x 103 cm main body
- Gross weight : 130 kg
