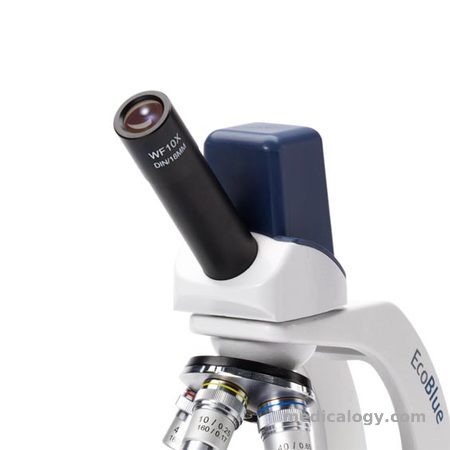

Mikroskop Trinokuler EcoBlue

Microscopes for materials science applications have the specific objectives and other equipment like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes

iScope for asbestos research

The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos indentification

Highlights

• Binocular and trinocular models
• HWF 12.5/15 mm eyepieces
• Reversed quintuple revolving nosepiece
• Infinity corrected IOS objectives
• 216 x 150 mm mechanical rackless stage
• Diascopic 3 W NeoLED Köhler illumination
• iCare sensor for energy saving
• CSS - Cable Storage System

• EYEPIECE(S)
  The metallurgical models are supplied with extended EWF 10x/20 mm (Ø 23.2 mm tube) eyepieces. Polarization models are supplied with a pair of EWF 10x/22 mm (Ø 30 mm tube) eyepieces, one eyepiece with cross hair and one eyepiece with a cross hair and micrometer reticle. Specific models for asbestos identification are supplied with HWF 12.5x/15 mm (Ø 30 mm tube) eyepieces and a Walton-Beckett reticle

  HEAD
  Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm. Two ± 5 diopter adjustments. A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm). The trinocular head 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x or 0.5x objective

  NOSEPIECE
  Revolving quintuple reversed nosepiece on ball bearings

  OBJECTIVES
  Plan PLi infinity corrected objectives for asbestos research microscopes except the S40x which is a plan phase contrast PLPHi infinity corrected objective. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



  STAGES
  The iScope rackless stage has no protruding parts, enables more smooth movements and is safer working

  CONDENSER
  Height adjustable Abbe 1.25 phase contrast condenser supplied with slider with 10/40 annuli, green filter and alignment telescope

  FOCUSING
  Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

  ICARE SENSOR
  The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

  CSS – CABLE STORAGE SYSTEM
  iScope allows users to easily insert the power cable into the backside of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensure the safe transportation of the microscope

  CONFIGURATIONS
  The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types.

  PACKAGING
  Supplied with power cord, dust cover, spare fuse where available and user manual. All packed in polystyrene boxes
