Dijamin original dan bergaransi
Flow control range: 1-10L/Min ,1-15L/Min
Input pressure: <15MPa
Output pressure: 0.2 ~ 0.3MPa
The product has flow control which provide stability
The main part uses the goodness copper and cut with precision digitally controlled lathe.
Lengthening air inlet valve lever, fit for the different capacity of oxygen cylinder
Integrated casting flowmeter
Flow tube, wet cup of high strength polycarbonate plastic body
High temperatured high pressure sterilized humidifier body, to meet European standards for B-Level disinfection.
Polymer High-density filter, wet based uniform
Technical specification:
Flow control range: 1-10L/Min ,1-15L/Min
Input pressure: <15MPa
Output pressure: 0.2 ~ 0.3MPa
The control pressure of safety valve: 0.35-0.05Mpa
Connecting thread: CGA540, CGA870, G5/8 male, G5/8 female, DIN477,G3/4"
(Please refer to our brochure for more detail information)

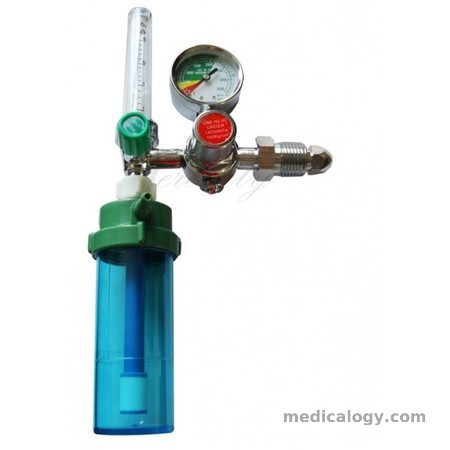

The flowmeter with humidifier is used in reducing gas pressure and adjusting the gas volume, which rescue patient and treat as oxygen therapy by hospital.Also may make using of other gas reduced pressure and the control flow.
Product main feature:
The product has artistic outlook, and flow control comfortable and stable.
The reductor is adjustable;The structure is unique, and the performance is reliable.
The stainless steel floater and the orange substrate flowmeter have a especially visual effect;
The international standard connect way, is suitable for all kinds of gas bottle installation.
