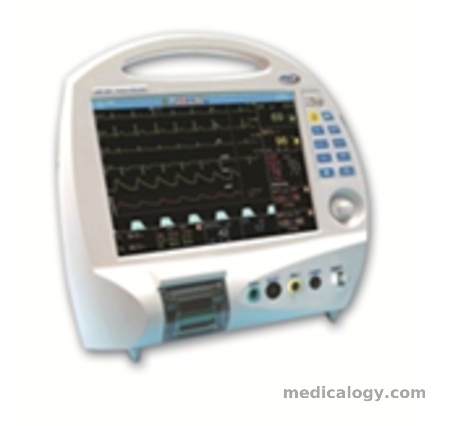

Resuscitative-surgical monitor UM-300
UM-300 is :
- Mobility
- Architecture flexibility
- Advanced network capacities
Multifunctional portable bedside monitor UM-300 is designed for continuous monitoring of patient’svital functions. Multi-operated bedside monitor UM-300 is indispensable in surgeries, anesthesiology and emergency treatment, maternity departments, as well as on emergency medical services,in hospitals and during transportation. Monitor UM-300 can be used for monitoring vital functions of adults, children and infants. Color, TFT, 12 "high
Features :
- Definition display (800 × 600)
- Touch screen
- Quick keysand rotary manipulator
- Individual screen settings (12 profiles)
- Simultaneous displaying of 12 curves on the screen
- Screen "big numbers"
- Programmable buttons
- 16 colors to display all monitored parameters
- Built-in nonvolatile memory
- Trends (720 hours)
- Autosavingwhen alarm and irregular pulse
- Built-in thermal printer
- Autoprint when alarm and irregular pulse
- Multilevel system of audio and visual alarm
- Patient card.
Functional capabilities:
- Registration and monitoring of ECG, heart rate, breathing rate, SpO2, NIBP
- Heart rate variability analysis
- Arrhythmias and ST-segment displacementanalysis
- SpO2 measurement technique option: (UTAS; Nellcor OxiMax with patented alarmssystem, SatSeconds)
- T monitoring (2 channels)
- ID monitoring (4 channels)
- CO2monitoring of breathable air in main and lateral flows
- Monitoring of N2O,Co2, O2, anesthetic gas vaporsAAg (Hal, Iso, Enf, Sev, Des) in breathable air in main and lateral flows through gas module
- Measurement of cardiac output and other parametersof hemodynamics by thermodilution
- Monitoringof invasive pressure and cardiac output with PiCCO technology
- Depth of anesthesia analysis with BIS index evaluation (BIS-module)
- OxiCRG parameters displaying
- Built-indoses estimator
- Built-inprotection from defibrillator discharge and radiofrequency electrosurgical instrument
- Modern operating under strong artifacts
- ECG channel with defibrillatorsynchronization
- Nurse call" function
- SD card connection
- Additional external display connection
- Connection to the clinics information network by using a wired (Ethernet) or wireless (WI-FI) connection.
